Link two tables, and show data from the 3rd
Avatar
Derek Jones

Active Member
Members
Level 0
Forum Posts: 4
Member Since:
August 8, 2021
sp_UserOfflineSmall Offline
1
August 8, 2021 - 1:04 am
sp_Permalink sp_Print

I'm new to Power Query and Power Pivot.  I'm creating a dashboard, and having some trouble mastering the relationships between tables.   There's some constraints / database logic at work.

In this simplified example I'd like to create a pivot table that shows the "Client Rate" applicable to the "Named Resource"
e.g. Amy, is an actor.  Actors are classified as Entertainment.  Entertainment has a client rate of $150.  Therefore I'd like to show in a pivot table Amy, and the rate of $150.  Refer to the image attached

Table A

Named Resource, Role A

Amy, Actor

Cristina, Bar person

Table B

Role B, Classification

Actor, Entertainment

Bar person, Hospitality

Table C

Classification, Client Rate

Entertainment, $150

Hospitality, $180

The tables are joined 1 to many on Role (Tables A to B), and Classification (Tables B to C).

When I create a pivot table with

  • Named Resource & Role A in rows, and
  • Sum of Client rate in Values,
    • The table contains these values
      • Named Resource, Role A, Sum of Client Rate
      • Amy, Actor, 330
      • Cristina, Bar person, 330
    • I would like it to show these values
      • Named Resource, Role A, Sum of Client Rate
      • Amy, Actor, 150

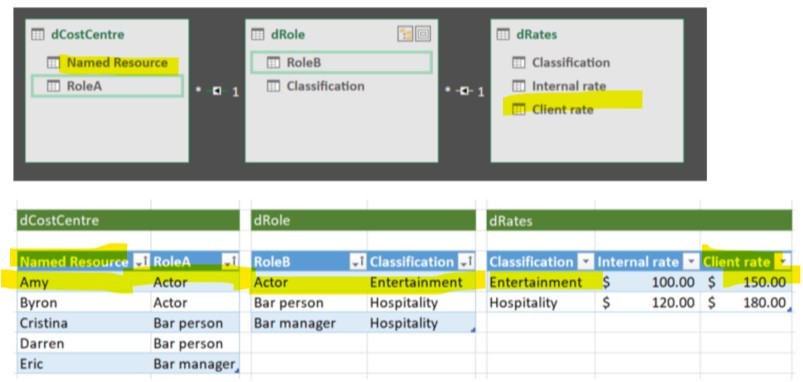

      • Cristina, Bar person, 180Power-Query-relationships-1.jpgImage Enlarger

Hope that makes sense.  Can you help me achieve the above result, and understand the database logic that makes it work the way it does?

sp_PlupAttachments Attachments
  • sp_PlupImage Power-Query-relationships-1.jpg (48 KB)
sp_AnswersTopicSeeAnswer See Answer
Avatar
Mynda Treacy
Admin
Level 10
Forum Posts: 4614
Member Since:
July 16, 2010
sp_UserOfflineSmall Offline
2
August 9, 2021 - 10:20 am
sp_Permalink sp_Print

Hi Derek,

Welcome to our forum! Please upload your sample Excel file shown in the screenshots so we don't have to recreate your data to help you.

Thanks,

Mynda

Avatar
Anders Sehlstedt
Eskilstuna, Sweden

VIP
Members


Trusted Members
Level 3
Forum Posts: 880
Member Since:
December 7, 2016
sp_UserOfflineSmall Offline
3
August 11, 2021 - 10:22 pm
sp_Permalink sp_Print

Hello Derek,

I understand what you are trying to achieve, but even though Excel can handle big data in the Data Model it is not a relational database as such.
Relationships in the Data Model works when you have a 1 to many relation, where the tables on the many side are the tables where you want to get the values from and where the tables on the 1 side are those which you want to sort or filter by.

Based on your sample data (which in reality is to small to be separated like this) you should have following tables.

Table A
Named resource, Role, Internal rate, Client rate

Table B
Role, Classification

Br,
Anders

sp_AnswersTopicAnswer
Answers Post
Avatar
Derek Jones

Active Member
Members
Level 0
Forum Posts: 4
Member Since:
August 8, 2021
sp_UserOfflineSmall Offline
4
August 15, 2021 - 12:16 pm
sp_Permalink sp_Print

Thanks Mynda and Anders,

I was assuming because the 3 tables were linked that I could then just data from table 1 to get related data from table 3.  From my experimenting and your answer Anders I can see that this is not the way forward.

Instead I used the Join function.  A left join gave me the connections I needed to show the person, and their rate, and to also keep the data tables in the same structure.

Cheers,

Derek
