Chart Design - Matrix View
Avatar
Erwin Van Trier
Member
Members

Dashboards

Power Query

Power Pivot

Excel

Word

Outlook
Level 0
Forum Posts: 7
Member Since:
August 14, 2022
sp_UserOfflineSmall Offline
1
August 20, 2022 - 2:01 am
sp_Permalink sp_Print

I played with the different formats of chart types to provide a quick overview of server states per application module.

I wasn't really happy with either of the options available as the usability of each option wasn't where I wanted it to be. The best option in my mind was to provide a simple matrix App_Module versus Server state.

When applying the following 'trick' I achieved the view I was looking for

  1. Chart Type = Clustered Bar
  2.  Format each of the Data Series as follows
    1.  Fill = "No Fill"
    2.  Border = "No Line"
    3.  Shadow = "No Shadow"

Files with initial and improved view are attached.

sp_AnswersTopicSeeAnswer See Answer
Avatar
Mynda Treacy
Admin
Level 10
Forum Posts: 4449
Member Since:
July 16, 2010
sp_UserOfflineSmall Offline
2
August 22, 2022 - 8:57 am
sp_Permalink sp_Print

Hi Erwin,

The file didn't get attached. You need to click 'start upload' after selecting your file, then wait for the grey check mark beside the file size before clicking 'submit reply'.

Mynda

Avatar
Erwin Van Trier
Member
Members

Dashboards

Power Query

Power Pivot

Excel

Word

Outlook
Level 0
Forum Posts: 7
Member Since:
August 14, 2022
sp_UserOfflineSmall Offline
3
August 22, 2022 - 10:19 pm
sp_Permalink sp_Print

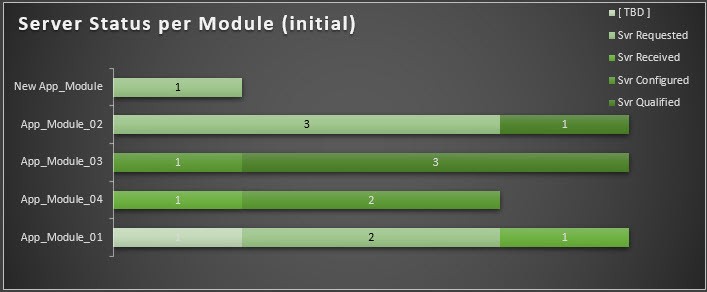

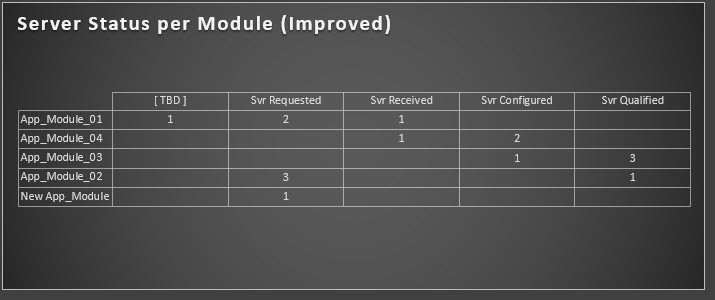

Matrix_Chart_Improved.jpgImage Enlarger

Matrix_Chart_Initial.jpgImage Enlarger

sp_PlupAttachments Attachments
  • sp_PlupImage Matrix_Chart_Improved.jpg (25 KB)
  • sp_PlupImage Matrix_Chart_Initial.jpg (29 KB)
Avatar
Mynda Treacy
Admin
Level 10
Forum Posts: 4449
Member Since:
July 16, 2010
sp_UserOfflineSmall Offline
4
August 23, 2022 - 8:02 am
sp_Permalink sp_Print

Hi Erwin,

The trouble with stacked column/bar charts is only the first item in the stack is comparable across, in your case, the apps. Another option is to use small multiple charts, sometimes called panel charts.

Mynda

sp_AnswersTopicAnswer
Answers Post
Avatar
Erwin Van Trier
Member
Members

Dashboards

Power Query

Power Pivot

Excel

Word

Outlook
Level 0
Forum Posts: 7
Member Since:
August 14, 2022
sp_UserOfflineSmall Offline
5
August 23, 2022 - 8:40 am
sp_Permalink sp_Print

While the panel charts gave me some useful ideas for a different context, I don't think they are useful to provide a quick overview of server states per application.



The number of applications will most likely grow but there will always be only 5 different states of a server.

In this case I think I will stick with the option of my table chart

Avatar
Mynda Treacy
Admin
Level 10
Forum Posts: 4449
Member Since:
July 16, 2010
sp_UserOfflineSmall Offline
6
August 23, 2022 - 7:09 pm
sp_Permalink sp_Print

Fair enough, Erwin. You know your data better than me. I honestly don't understand what the data represents!
