Split excel file into separate files

5 Posts
2 Users
0 Reactions
90 Views
(@marsil)
Posts: 72
Estimable Member
Topic starter


Hi folks,

Hope everyone is well

Could you please help me to create macro to do below steps.

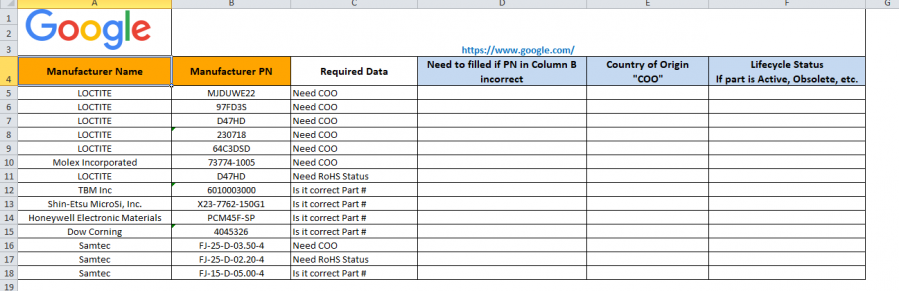

  • First Tab will contain Template.
  • Second Tab will contain all Data need to separate it in the template to separated files.
  • Each file will contain the Manufacturer Name and all Manufacturer PN.
  • The file will be named by MFR name after removing special characters. Ex: Intel, Inc,  so file name should be IntelInc
  • The separated files will be filled based in MFR name. as Col A will contain MFR name, Column B will contain MFR PN, Column C will contain the Required Data. All data available from second sheet.
  • If the MFR PN is duplicate due it have multi required data, it should collected in one cell separated by |

Please check attached sample.

Your assistance is greatly appreciated.

Thanks;

Marsil


Posted : 15/06/2020 6:27 pm
(@purfleet)
Posts: 412
Reputable Member


Hi Marsil

I have had a quick look and it seems you want a fairly comprehensive process automated – have you made a start with coding this or do you already have a manual process with formulas that achieves the desired result?

Most of the time these forums are for people to troubleshoot a problem or learn how to do something quite complex.

If you can post what part is causing the issue I am sure there are people on here that can help.


Posted : 16/06/2020 8:44 am
(@marsil)
Posts: 72
Estimable Member
Topic starter


Thank you Purfleet for fast reply.

Yes I have attached macro and I want to update it's output to be with the same format for template


this macro split to sheets then files, I just want to update the files to be have the same template.



Thanks;

Marsil


Posted : 16/06/2020 10:52 am
(@purfleet)
Posts: 412
Reputable Member


I have added some loops at the bottom to copy over formatting etc

Dim fRange As Range
Dim tRange As Range

Set tRange = Worksheets("Template").Range("a1:f4")
Set fRange = Worksheets("Template").Range("a1").CurrentRegion

'fRange.Copy
Set P1 = Worksheets("Template").Shapes.Copy

'Top Bit
tRange.Copy

For Each ws In ThisWorkbook.Worksheets

If ws.Name <> "Template" Then
ws.Activate
ws.Range("a1:f4").PasteSpecial xlPasteAll
'ws.Range("a1").PasteSpecial xlPasteColumnWidths
End If

Next ws

'Column Widths
fRange.Copy

For Each ws In ThisWorkbook.Worksheets

If ws.Name <> "Template" Then
ws.Activate
ws.Range("a1").PasteSpecial xlPasteColumnWidths
ws.Range("a1").CurrentRegion.Rows.AutoFit
ws.Range("1:3").Rows.RowHeight = 23

End If

Next ws

'Logo

For Each ws In ThisWorkbook.Worksheets

If ws.Name <> "Template" Then
Worksheets("Template").Range("a1:a3").CopyPicture xlScreen, xlPicture
ws.Paste Destination:=ws.Range("a1")
End If

Next ws


Posted : 18/06/2020 1:38 am
(@marsil)
Posts: 72
Estimable Member
Topic starter


Hi Purfleet

You are amazing!  Thank you so much!

I just need your help to know how I can change in code to modify logo size

I tried but it is not work correctly.

Please check attached file.

Grateful for your support..

Thanks;

Marsil


Posted : 21/06/2020 2:23 pm
