Change Order For Chart Series Collection VBA Code
Avatar
Sivaprakasam Sivaprakasam
Member
Members
Level 0
Forum Posts: 15
Member Since:
February 27, 2020
sp_UserOfflineSmall Offline
1
September 23, 2020 - 12:20 pm
sp_Permalink sp_Print

Hi

I am using the Excel 2013

I have to change in select data the Specify Order For Series collection in Select Data for Chart

=SERIES([Series Name],[X Values],[Y Values],[Plot Order])

I have to change the "Holder" series collection from 5th to 1st move

I actually did something similar. I put "ActiveChart.SeriesCollection(5).PlotOrder = 1" for the first data series, but it doesn't work that way.

when i run the vba code "ActiveChart.SeriesCollection(5).PlotOrder = 1", but this go 3rd position the "Holder".

I don't know, what I am wrong my VBA code... but not working

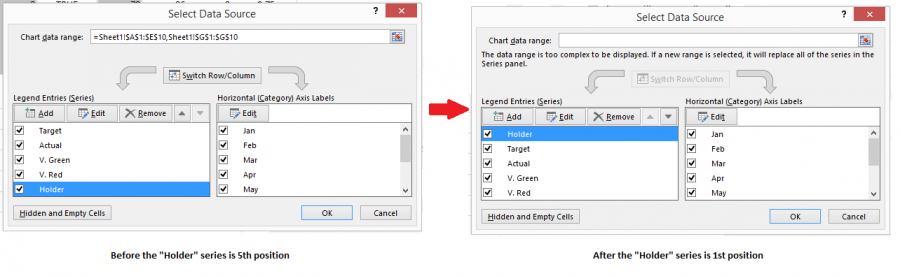

We need that the "Holder" series move from 5th to 1st position (Untitled image and VBA code Excel enclosed for your reference)

Untitled.pngImage Enlarger

Kindly correction the VBA code

Thanks for Help....

sp_PlupAttachments Attachments
  • sp_PlupImage Untitled.png (116 KB)
Avatar
Miguel Santos
Member
Members
Level 0
Forum Posts: 80
Member Since:
February 20, 2020
sp_UserOfflineSmall Offline
2
September 25, 2020 - 12:34 am
sp_Permalink sp_Print sp_EditHistory

Hello,

If you could load a workbook with a sample, it would be much easier, but I will try to help

a lot of data is missing about how data is organized in your spreadsheet, how it is obtained and what type of chart you are using


example:

1 - assuming you have the data on the sheet and a command button on the sheet (that is, you don't use a user form to display the graph)

2 - I suppose it has only 5 series

3 - I used this type of graph ( xlColumnClustered )

' place the following procedure on the sheet module

Private Sub CommandButton1_Click()

Dim myChartObj As ChartObject

Dim i As Long

Dim NewChartOrder As Variant ' will be for the new series order

Dim OldChartOrder(0 To 4) As String ' if you have 5 series, you will have to write like this


Application.ThisWorkbook.Worksheets("Sheet1").Activate

If Not ChartExists(Application.ThisWorkbook.Worksheets("Sheet1"), "MyChartName") Then
     ' Chart not exist
     Exit Sub
End If

Set myChartObj = Application.ThisWorkbook.Worksheets("Sheet1").ChartObjects("MyChartName")
myChartObj.Activate

' MsgBox ActiveChart.SeriesCollection.Count     '  if you want to know how many series your chart has

NewChartOrder = Array(5, 1, 2, 3, 4)  ' this will be the order of the series, each time you click the command button, series 5 moves back one position

' if you want to have the order immediately of 5,1,2,3,4 activate the following line of code and disable the previous one to this information

' NewChartOrder = Array(2, 3, 4, 5, 1)

With ActiveChart
     For i = LBound(NewChartOrder) To UBound(NewChartOrder)
          OldChartOrder(i) = .SeriesCollection(i + 1).Name
     Next i
     For i = LBound(NewChartOrder) To UBound(NewChartOrder)
          .SeriesCollection(OldChartOrder(i)).PlotOrder = NewChartOrder(i)
     Next i
End With

If Not myChartObj Is Nothing Then Set myChartObj = Nothing

End Sub



' place the following procedure on standart module

Public Function ChartExists(wsTest As Worksheet, strChartName As String) As Boolean '   chart name exist ?

Dim chTest As ChartObject

On Error Resume Next
Set chTest = wsTest.ChartObjects(strChartName)
On Error GoTo 0

If chTest Is Nothing Then
     ChartExists = False
Else
     ChartExists = True
End If

End Function



Regards,



Miguel
