Vertical Chart Axis Shows One Level when Expecting Two
Avatar
Shawn Wallack
Member
Members
Level 0
Forum Posts: 77
Member Since:
December 7, 2021
sp_UserOfflineSmall Offline
1
December 16, 2021 - 1:08 am
sp_Permalink sp_Print

Hello -

I have a standard (non-pivot) chart based on named ranges which in turn are based on a pivot table. Note that the table begins in Column B Row 41, as follows:

[ART]; [Team]; [Low]; [High]
[Sample ART]; [Yankees]; [20]; [24]
[Sample ART]; [Mets]; [22]; [26]
[Sample ART]; [Giants]; [23]; [25]

Named Range: MyChartAxis=OFFSET(rptRange!$B$41,,,COUNTA(rptRange!$F$41:$F$1000),2)

The chart (see attached) visualizes a range of performance values for my teams, each of which belongs to an ART (Agile Train). For example, within "Sample ART" I have the Yankees with values 20-24, the Mets with 22-26, and the Giants with 23-25. The chart renders as expected -- except for the vertical axis.

As you can, when more than one team is selected in the slicer, the vertical axis shows the ART name and the selected team names. However, if only one team is selected, then the axis does not show the ART name at all. Since team names are not unique across ARTs, this can cause confusion as to which team we're actually looking at.

How do I get the vertical axis to always show the ART name?

Thanks!

Avatar
Catalin Bombea
Iasi, Romania
Admin
Level 10
Forum Posts: 1810
Member Since:
November 8, 2013
sp_UserOfflineSmall Offline
2
December 16, 2021 - 1:40 am
sp_Permalink sp_Print

Nothing attached, make sure you press the Start Upload button after you select files.

Avatar
Shawn Wallack
Member
Members
Level 0
Forum Posts: 77
Member Since:
December 7, 2021
sp_UserOfflineSmall Offline
3
December 20, 2021 - 2:04 pm
sp_Permalink sp_Print sp_EditHistory

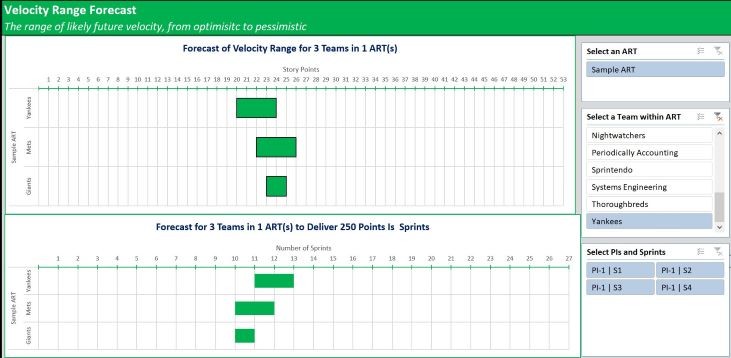

Excel-Chart-with-Shallow-Axis-attempt-3JPG.JPGImage Enlarger

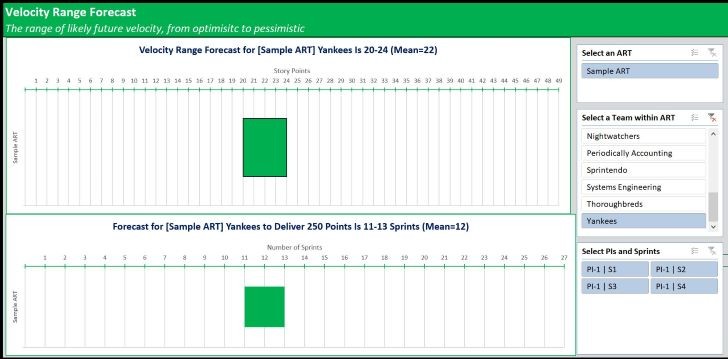

Excel-Chart-with-Shallow-Axis-2-attempt-3.JPGImage Enlarger
Re-attaching. Thanks.

sp_PlupAttachments Attachments
  • sp_PlupImage Excel-Chart-with-Shallow-Axis-attempt-3JPG.JPG (50 KB)
  • sp_PlupImage Excel-Chart-with-Shallow-Axis-2-attempt-3.JPG (47 KB)
Avatar
Catalin Bombea
Iasi, Romania
Admin
Level 10
Forum Posts: 1810
Member Since:
November 8, 2013
sp_UserOfflineSmall Offline
4
December 20, 2021 - 5:24 pm
sp_Permalink sp_Print

Hi Shawn,

Hard to debug based on images, if you can attach a sample workbook that can reproduce the problem will be easier to check.

I would check the named ranges if they return the correct range in both cases.

Avatar
Shawn Wallack
Member
Members
Level 0
Forum Posts: 77
Member Since:
December 7, 2021
sp_UserOfflineSmall Offline
5
April 25, 2022 - 8:55 pm
sp_Permalink sp_Print

Velouria provided the answer:

Amend the formula to:

=IF(COUNTA(ReportBurndown!$X$2:$X$2)>0, OFFSET(ReportBurndown!$W$2,,,MAX(2,COUNTA(ReportBurndown!$Y$2:$Y$9999)),2),0)
