Hierarchical data ordering in Excel
Avatar
jaryszek
Member
Members
Level 0
Forum Posts: 183
Member Since:
February 1, 2019
sp_UserOfflineSmall Offline
1
June 4, 2020 - 2:40 am
sp_Permalink sp_Print sp_EditHistory

Hi,

i have source table like here:

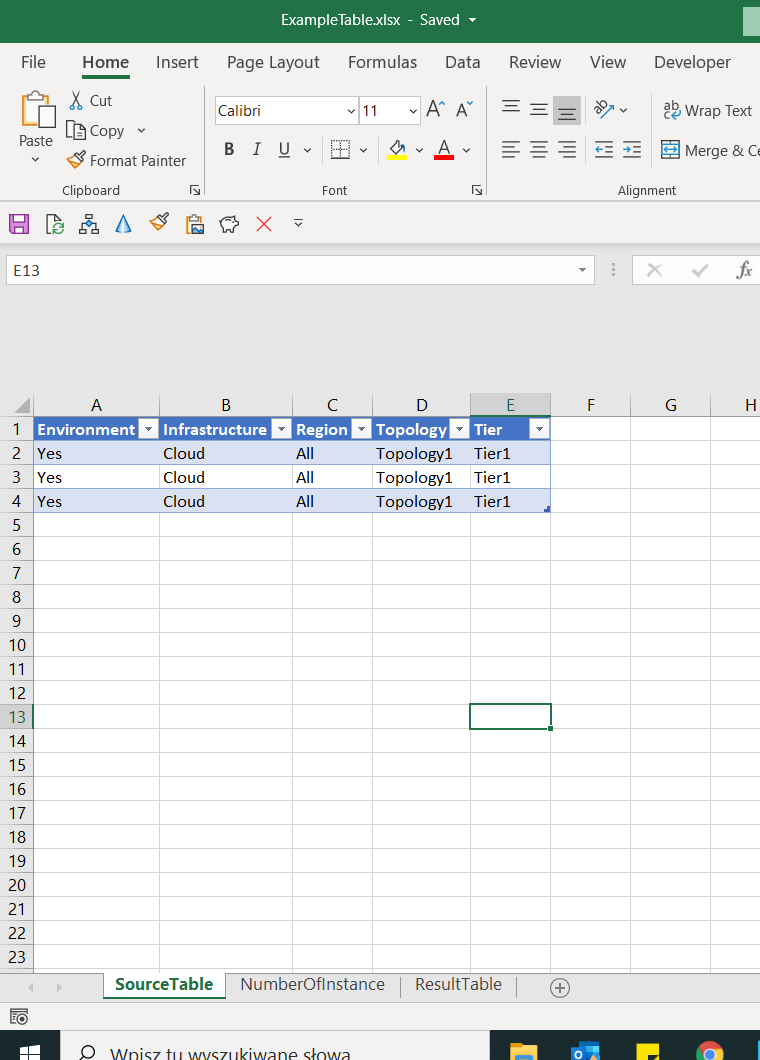

Screenshot_24.pngImage Enlarger



and the numberOfInstances like here:

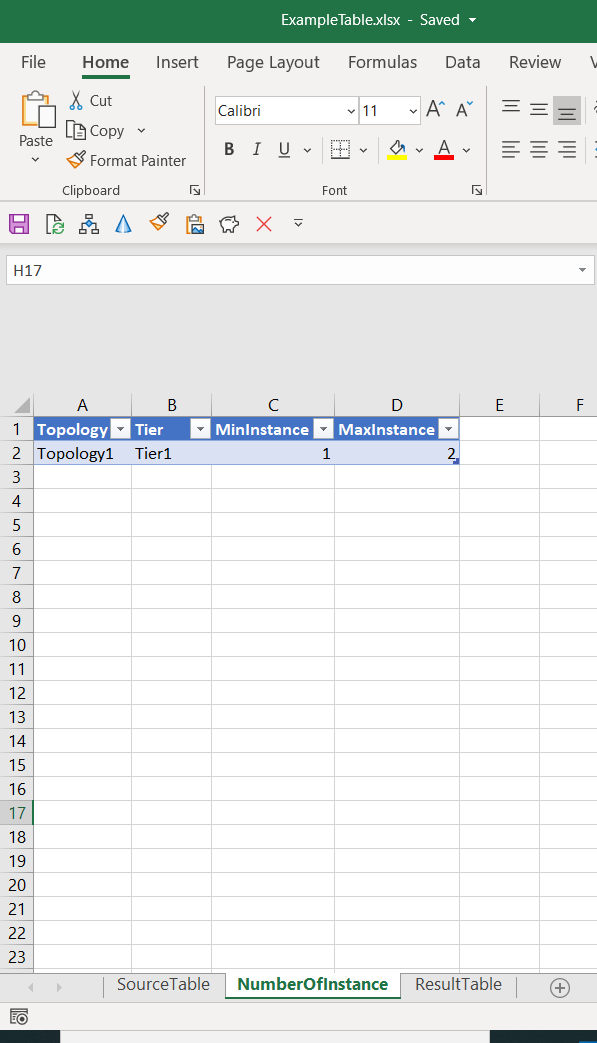

Screenshot_25.pngImage Enlarger



The number of instance can be from 1 to n, for example we have only 2. So resultTable should be changed accordingly.

The last table result table is looking like:

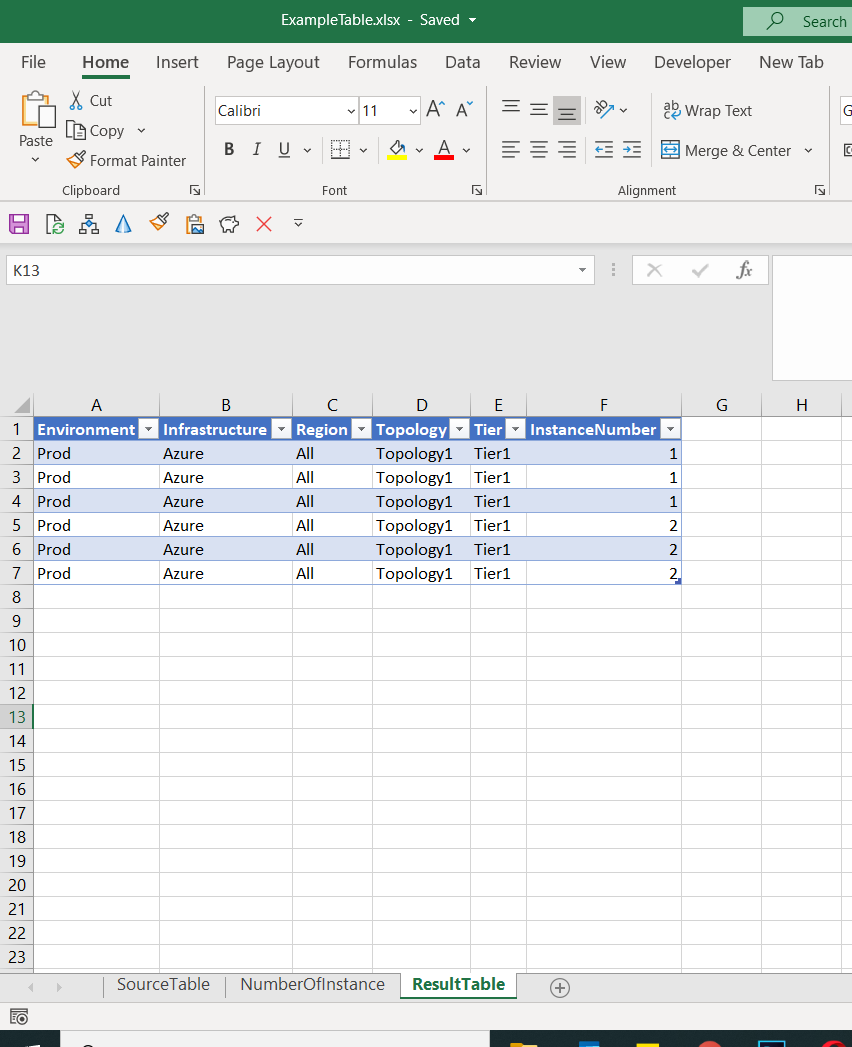

Screenshot_26.pngImage Enlarger



So as you can see there is Instance number for each TopologyTier in order way.

We have just doubled rows because we have instanceNumber from 1 to 2.
How can i build the Result table using PQ?

Cany anybody help?
Please,
Jacek

sp_PlupAttachments Attachments
  • sp_PlupImage Screenshot_24.png (80 KB)
  • sp_PlupImage Screenshot_25.png (56 KB)
  • sp_PlupImage Screenshot_26.png (85 KB)
sp_AnswersTopicSeeAnswer See Answer
Avatar
Philip Treacy
Admin
Level 10
Forum Posts: 1514
Member Since:
October 5, 2010
sp_UserOfflineSmall Offline
2
June 4, 2020 - 5:00 pm
sp_Permalink sp_Print

Hi Jacek,

I'm not clear on what result you actually want.  Is the result table in your image what you want?  Or is this what you end up with when trying to create the desired result in PQ?

Regards

Phil

Avatar
jaryszek
Member
Members
Level 0
Forum Posts: 183
Member Since:
February 1, 2019
sp_UserOfflineSmall Offline
3
June 5, 2020 - 12:11 am
sp_Permalink sp_Print sp_EditHistory

hi Phil!

thank you!
Exactly, i want to have Result table using PQ but i am having issues how can i merge Sourcetable and NumbeOfInstace table together to have repeating rows based on MaxInstance column...

Best,
Jacek

Avatar
Philip Treacy
Admin
Level 10
Forum Posts: 1514
Member Since:
October 5, 2010
sp_UserOfflineSmall Offline
4
June 5, 2020 - 12:55 pm
sp_Permalink sp_Print

Hi Jacek,

The final table is on a new sheet 'Final Query'.

Regards

Phil

Avatar
jaryszek
Member
Members
Level 0
Forum Posts: 183
Member Since:
February 1, 2019
sp_UserOfflineSmall Offline
5
June 5, 2020 - 5:36 pm
sp_Permalink sp_Print

Hi Phil,

thank you very much. This is not working unfortunately.

I changed maxInstance from 2 to 3 and now i should get:

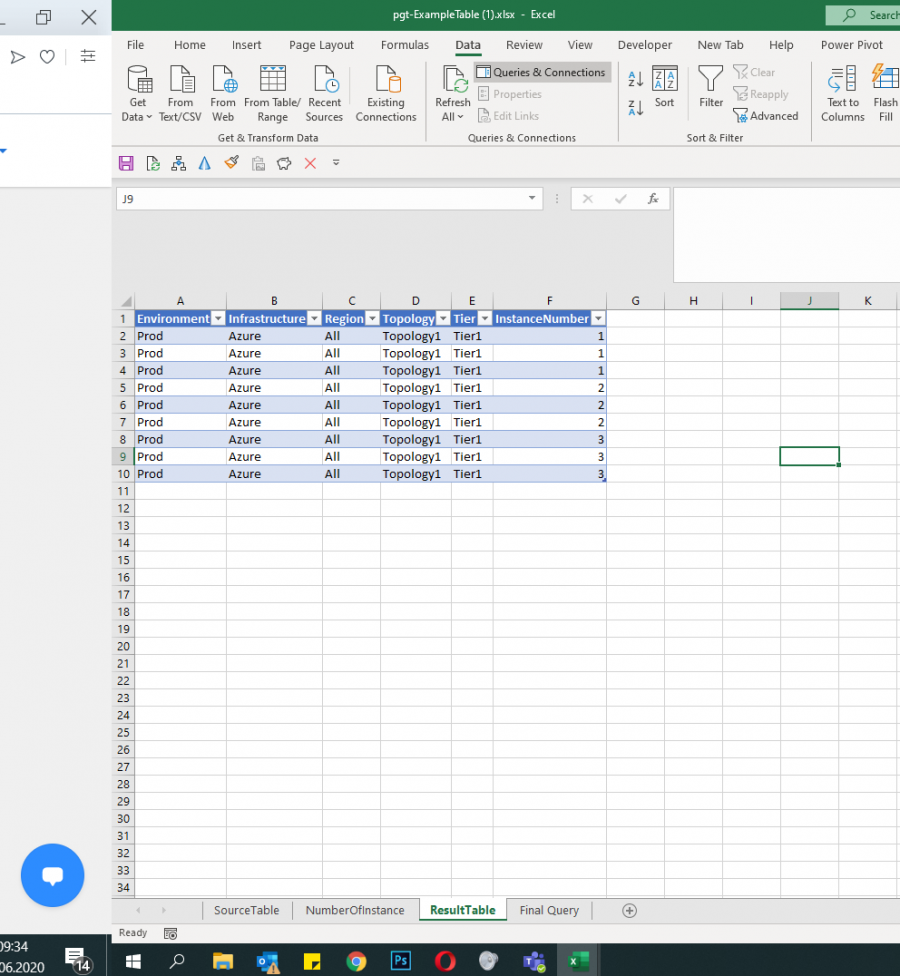

Screenshot_29.pngImage Enlarger

and in your resuleTable i got:

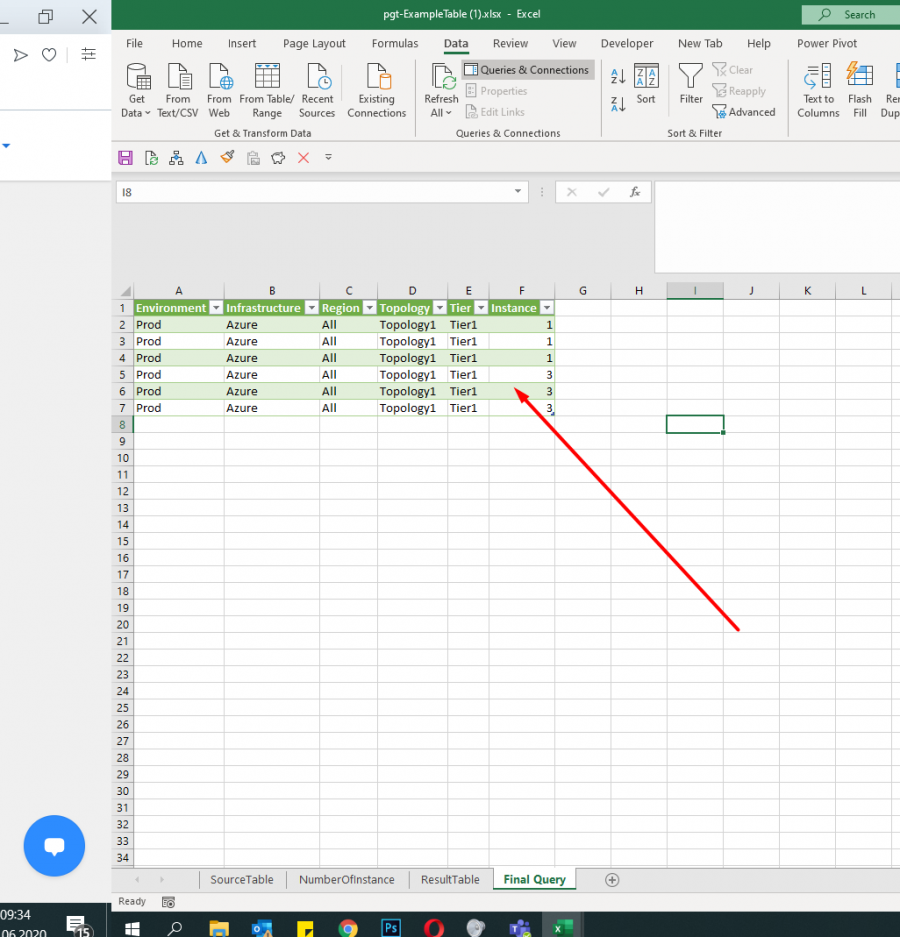

Screenshot_30.pngImage Enlarger

so as you can see this is not copying and increasing automatically rows...
If i will add 4 as MaxInstance i will have rows from 1 to 4 times 3 and so on...

Can you please help?
Jacek

sp_PlupAttachments Attachments
  • sp_PlupImage Screenshot_29.png (430 KB)
  • sp_PlupImage Screenshot_30.png (292 KB)
Avatar
Catalin Bombea
Iasi, Romania
Admin
Level 10
Forum Posts: 1807
Member Since:
November 8, 2013
sp_UserOfflineSmall Offline
6
June 6, 2020 - 3:23 pm
sp_Permalink sp_Print sp_EditHistory

Basically, you want to repeat all rows from Source table, based on MaxInstance count?

Try this query for t_SourceTable:

let
Source = Excel.CurrentWorkbook(){[Name="t_SourceTable"]}[Content],
#"Changed Type" = Table.TransformColumnTypes(Source,{{"Environment", type text}, {"Infrastructure", type text}, {"Region", type text}, {"Topology", type text}, {"Tier", type text}}),
#"Merged Queries" = Table.NestedJoin(#"Changed Type", {"Topology", "Tier"}, t_Instances, {"Topology", "Tier"}, "t_Instances", JoinKind.LeftOuter),
#"Expanded t_Instances" = Table.ExpandTableColumn(#"Merged Queries", "t_Instances", {"MinInstance", "MaxInstance"}, {"MinInstance", "MaxInstance"}),
#"Added Custom" = Table.AddColumn(#"Expanded t_Instances", "Custom", each {[MinInstance]..[MaxInstance]}),
#"Expanded Custom" = Table.ExpandListColumn(#"Added Custom", "Custom")
in
#"Expanded Custom"

The key here is to create a list, based on your conditions: {[MinInstance]..[MaxInstance]}. Then just expand the list into rows, this will create duplicate rows for each item in list.

Load results to sheet, hope this is what you're after.

sp_AnswersTopicAnswer
Answers Post
Avatar
jaryszek
Member
Members
Level 0
Forum Posts: 183
Member Since:
February 1, 2019
sp_UserOfflineSmall Offline
7
June 6, 2020 - 8:38 pm
sp_Permalink sp_Print

Catalin you are awesome!!!

Thank you very much love your solution,

It is working,
Best,
Jacek
