Is it possible to stop line charts plotting zero values?
Posted : 12/12/2019 4:57 pm
Hi Oracle!
Write a measure that sums the values and where the result is =0, return BLANK() e.g.
Line Chart Values = IF(SUM(FactTable[Sales])=0, BLANK(), SUM(FactTable[Sales])) Use this measure in the Values area for your line chart. Mynda
Posted : 12/12/2019 8:12 pm
Topic starter
Hi Mynda
Thanks for that. I had tried Blank() and "".
Here is my logic:
Average Weight = if(sum(Kill[Head])=0,BLANK(),AVERAGEX(kill,sum(Kill[Kilograms])/sum(Kill[Head])))
Here is the result of that logic:
[Image Can Not Be Found]

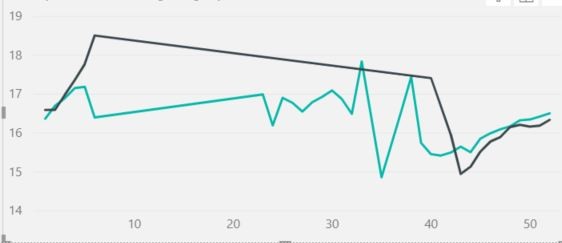

And the resulting chart:
Between weeks 6 and 40 in the south and weeks 6 and 23 in the north, there is no trading but the line chart interpolates between those weeks.
Oracle
Posted : 12/12/2019 10:16 pm
Yes, that's how line charts plot missing data and I'm not aware of any option to change it. The reasoning being that you need two points to create a line, if you have dates either side of a point without data, then you have no line.
If you don't want those points plotted then I recommend you change it to a column chart or use the combo chart that allows one series to be a line and the other to be a column chart. The tops of the columns can still be easily interpreted as a line.
Posted : 12/12/2019 10:40 pm
